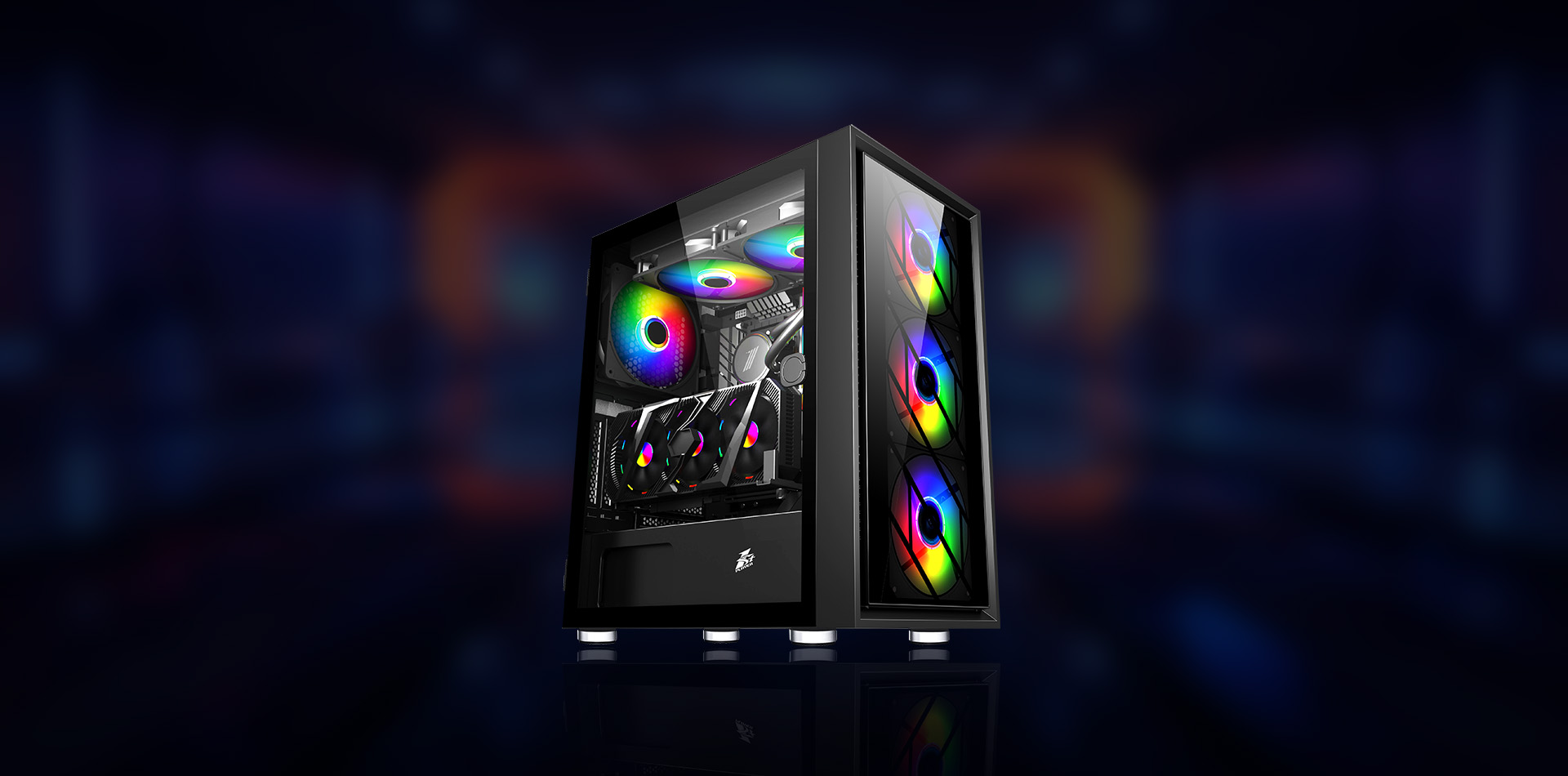

AR-7G

Case Gaming 1STPLAYER

AR series ATX Case


· Liquid Cooling Support(Fans are Optional)

   FRONT: 24/28/36 CM TOP: 24CM

· Fans Support: Up to 6 fans

· USB3.0*1+USB2.0*2+HD AUDIO

· 3.5" HDD:2  2.5" SSD:2

· Front panel&Left Side Panel:Tempered Glass




  • Support24cm / 36cm Liquid Cooling

  • Support 2OCM Case Fan

  • 23CM Wide Body PC Case

  • Hinged Style Side Panel

  • Support Vertical VGA Installation

  • Tempered Glass Pannels

Support 2OCM Case Fan+24cm / 36cm Liquid Cooling

TEMPERED GLASS PANNELS

23CM Wide Body PC Case

Hinged Style Side Panel

Support Vertical VGA Installation

Model

AR-7G

Structure Dimensions(L*W*H)

350*230*445MM

Product Dimensions(L*W*H)

390*230*460MM

Package Dimensions(L*W*H)

500*280*465MM

Structure Thickness

0.6MM

Materials

SPCC 0.6MM

FRONT&LEFT SIDE PANEL: TEMPERED GLASS

Form Factor
ATX/M-ATX/ITX

Drive Bays

5.25"" CD ROM: 0

3.5"" HDD: 2

2.5"" SSD: 2"

CPU MAX Height

190MM

VGA MAX Length

340MM

I/O Panel

USB3.0+USB2.0*2+HD AUDIO

PCI Card Slot

7

Fan Support


FRONT: 3*12CM/3*14CM/2*20CM

REAR: 1*12CM/1*14CM

TOP: 2*12CM/2*14CM

Liquid Cooling Support

FRONT: 240 MM/280 MM/360 MM

TOP: 240 MM

Power Supply Support

BOTTOM MOUNT(ATX)

Net Weight

6.7KG / 14.77lb
Gross Weight
7.0KG / 15.43lb
