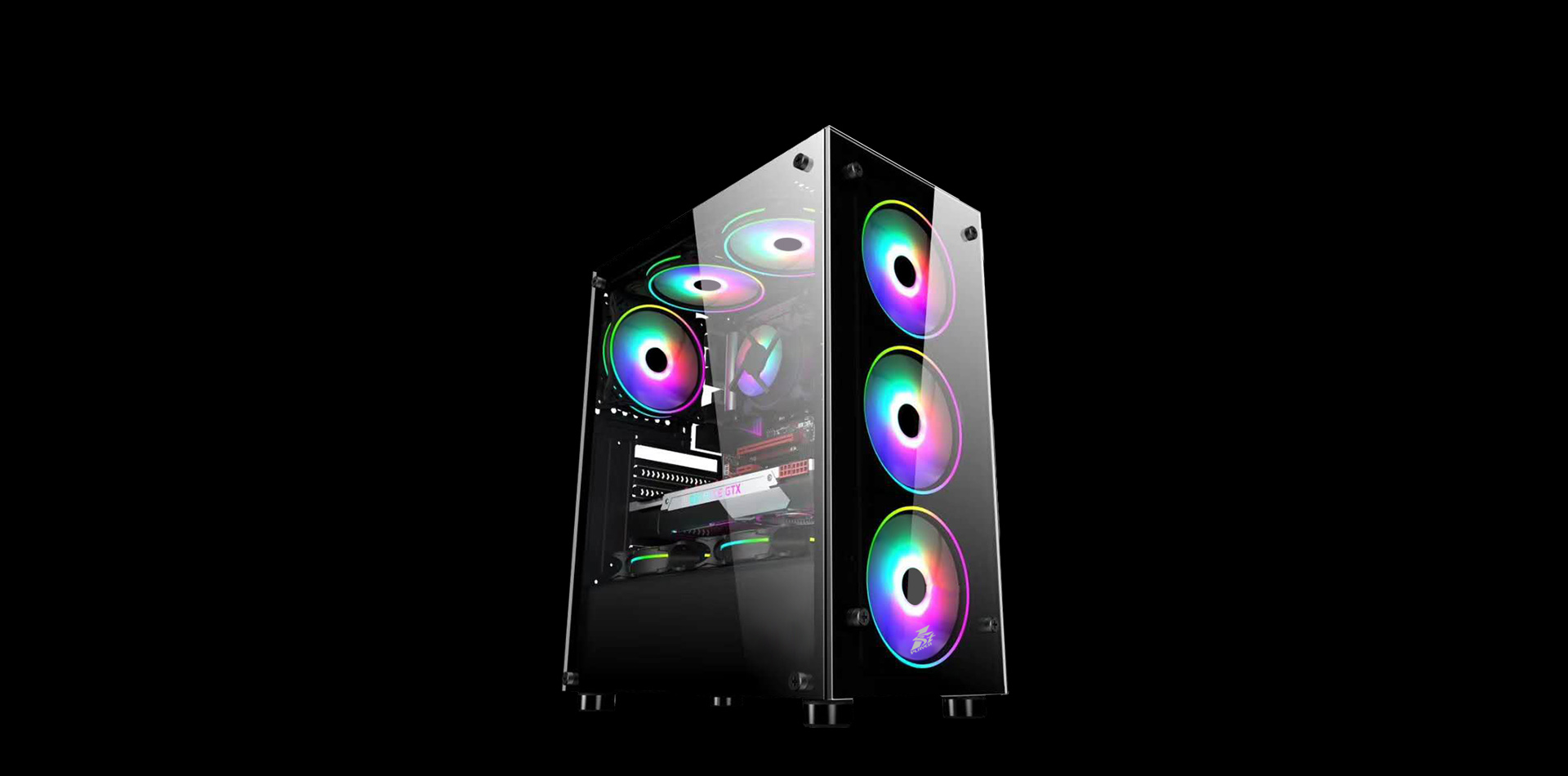

FIREDANCING series ATX Case.
· Liquid Cooling Support(Fans are Optional) TOP:24CM
· Fans Support: Up to 6 fans
· USB3.0*1+USB2.0*2+HD AUDIO
· 3.5" HDD：2 2.5" SSD：2
· Front panel&Left Side Panel:Tempered Glass
Model
V3-A
Structure Dimensions(L*W*H)
342*192*413MM
Product Dimensions(L*W*H)
372*200*425MM
Package Dimensions(L*W*H)
475*238*439MM
Structure Thickness
0.5MM
Materials
0.5MM SPCC F&L SIDE PANEL: TEMPERED GLASS
Form Factor
ATX/M-ATX/ITX
Drive Bays
5.25"" CD ROM: 0
3.5"" HDD: 2
2.5"" SSD: 2
CPU MAX Height
160MM
VGA MAX Length
350MM
I/O Panel
USB3.0*1+USB2.0*2+HD AUDIO*1+MICROPHONE*1
PCI Card Slot
7

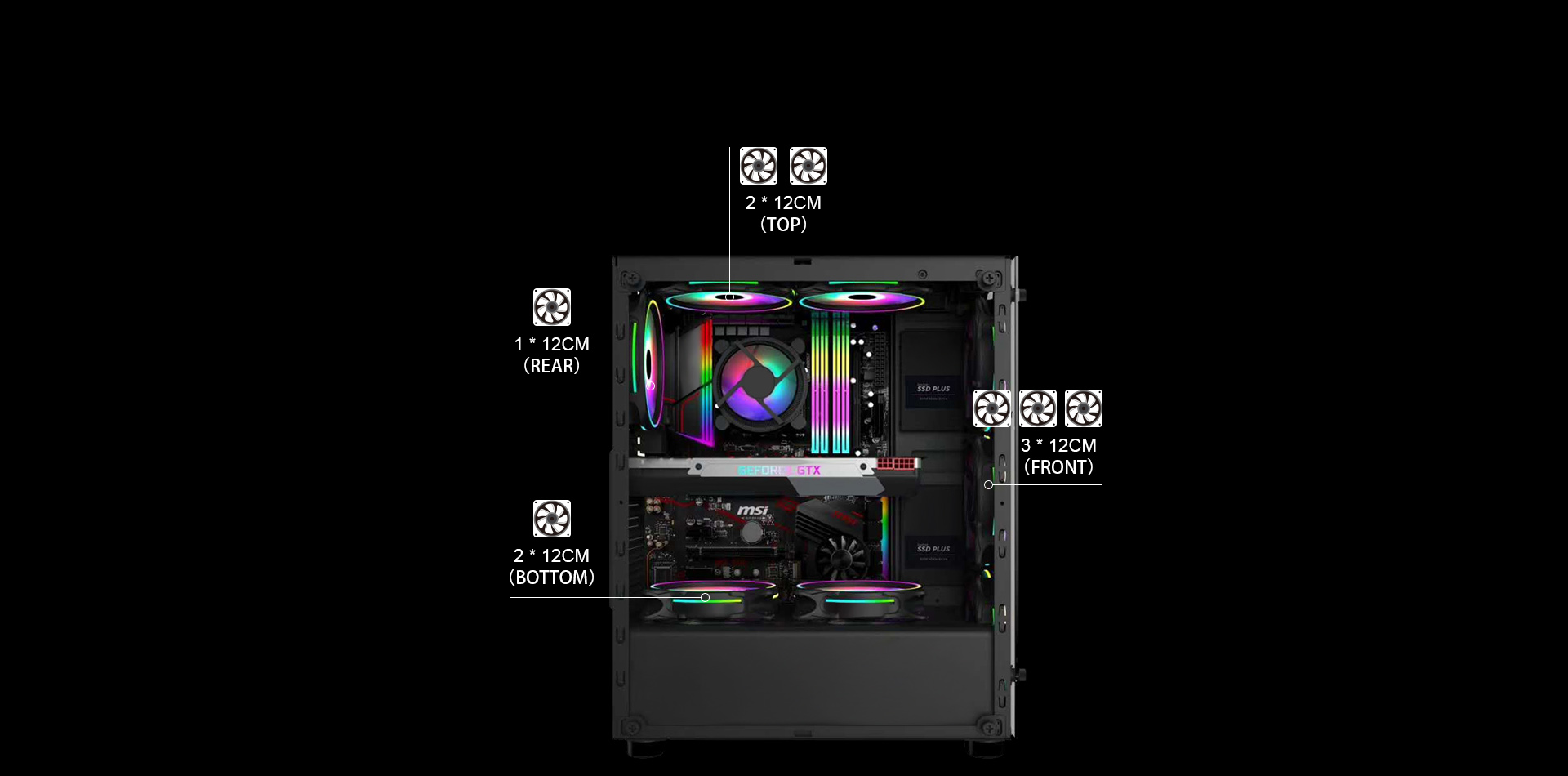

Fan Support
FRONT: 3*12CM
TOP: 2*12CM
REAR: 1*12CM
BOTTOM: 2*12CM
Liquid Cooling Support
FRONT: 240 MM TOP: 240 MM REAR：120 MM
Power Supply Support
BOTTOM MOUNT(ATX)
Net Weight
4.4KG / 9.70lb
5.1KG / 11.2lb
