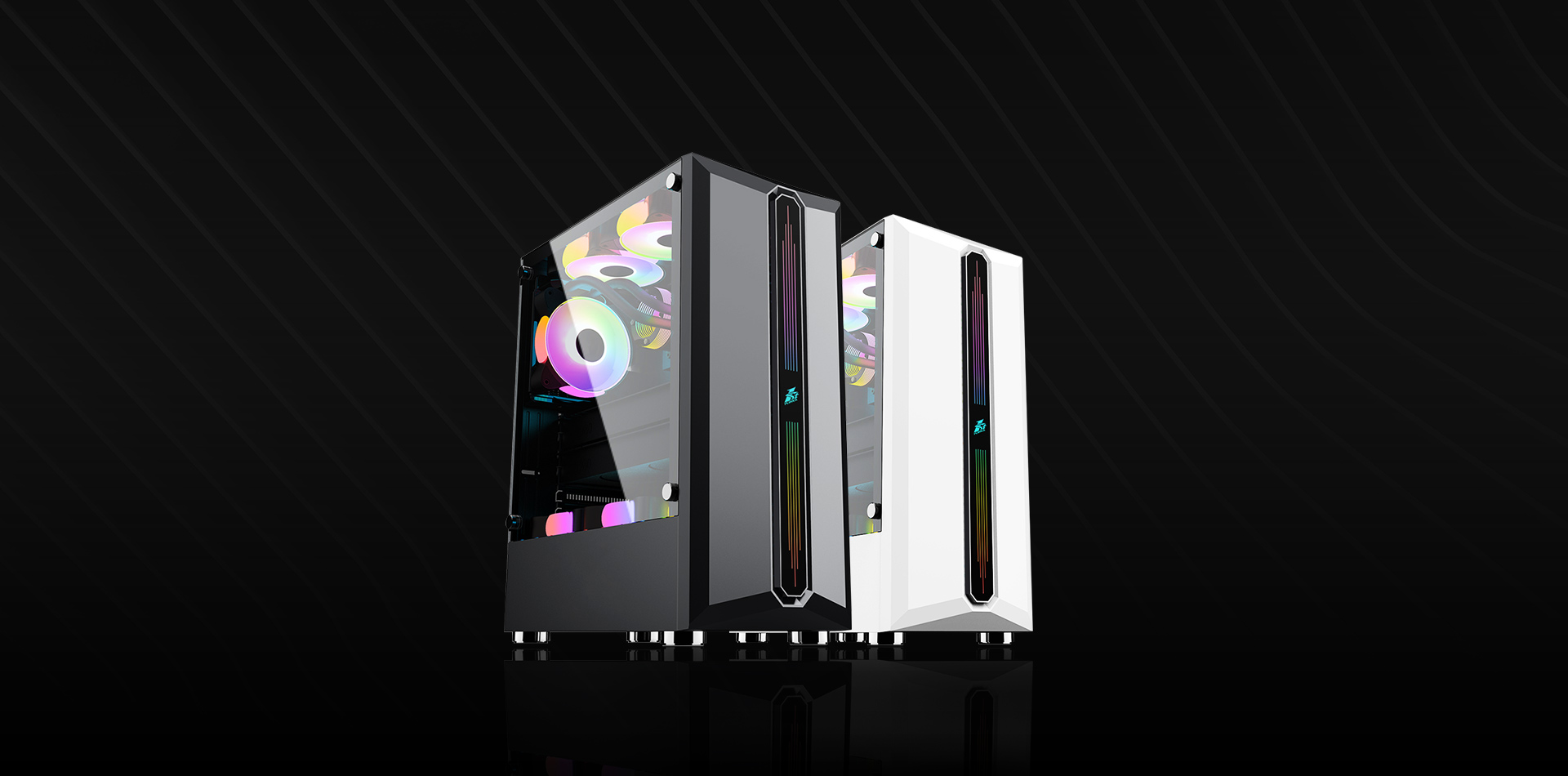

RAINBOW series ATX Case.

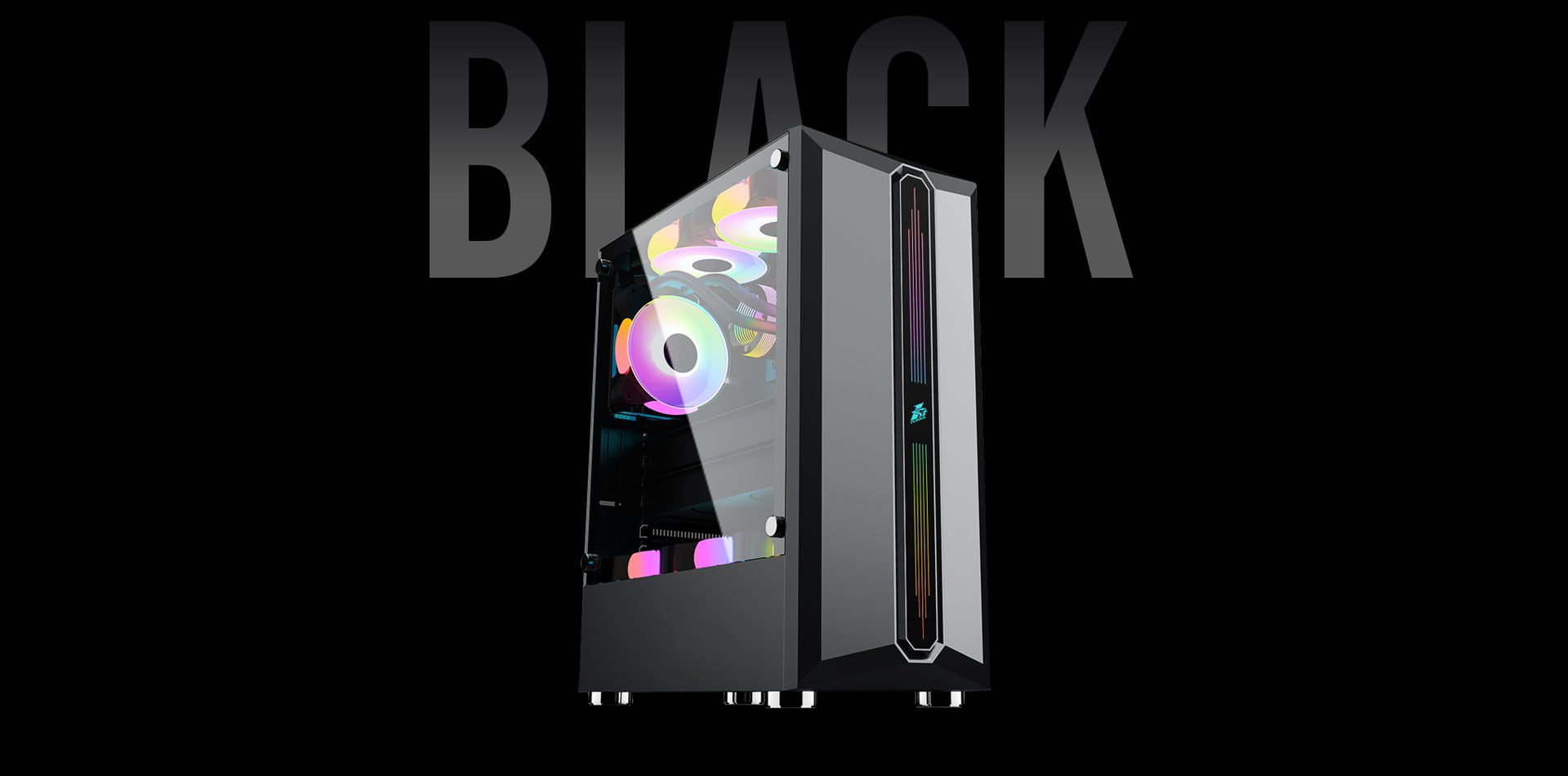

· RB-3 (Black)
· Liquid Cooling Support(Fans are Optional)
TOP：24cm
· Fans Support: Up to 8 fans
· USB3.0*1+USB2.0*2+HD AUDIO
· 3.5" HDD：2 2.5" SSD：1
· Left Side Panel:Tempered Glass
· Front panel with light strip
Model
RB-3
Structure Dimensions(L*W*H)
335*190*435MM
Product Dimensions(L*W*H)
380*190*447MM
Package Dimensions(L*W*H)
500*245*445MM
Structure Thickness
0.45MM
Materials
SPCC 0.45MM
LEFT SIDE PANEL:TEMPERED GLASS
Form Factor
ATX/M-ATX
5.25”CD ROM:0
3.5”HDD:2
2.5”SSD:1
CPU MAX Height
160MM
VGA MAX Length
305MM
I/O Panel
USB3.0+USB2.0*2+HD AUDIO
PCI Card Slot
7

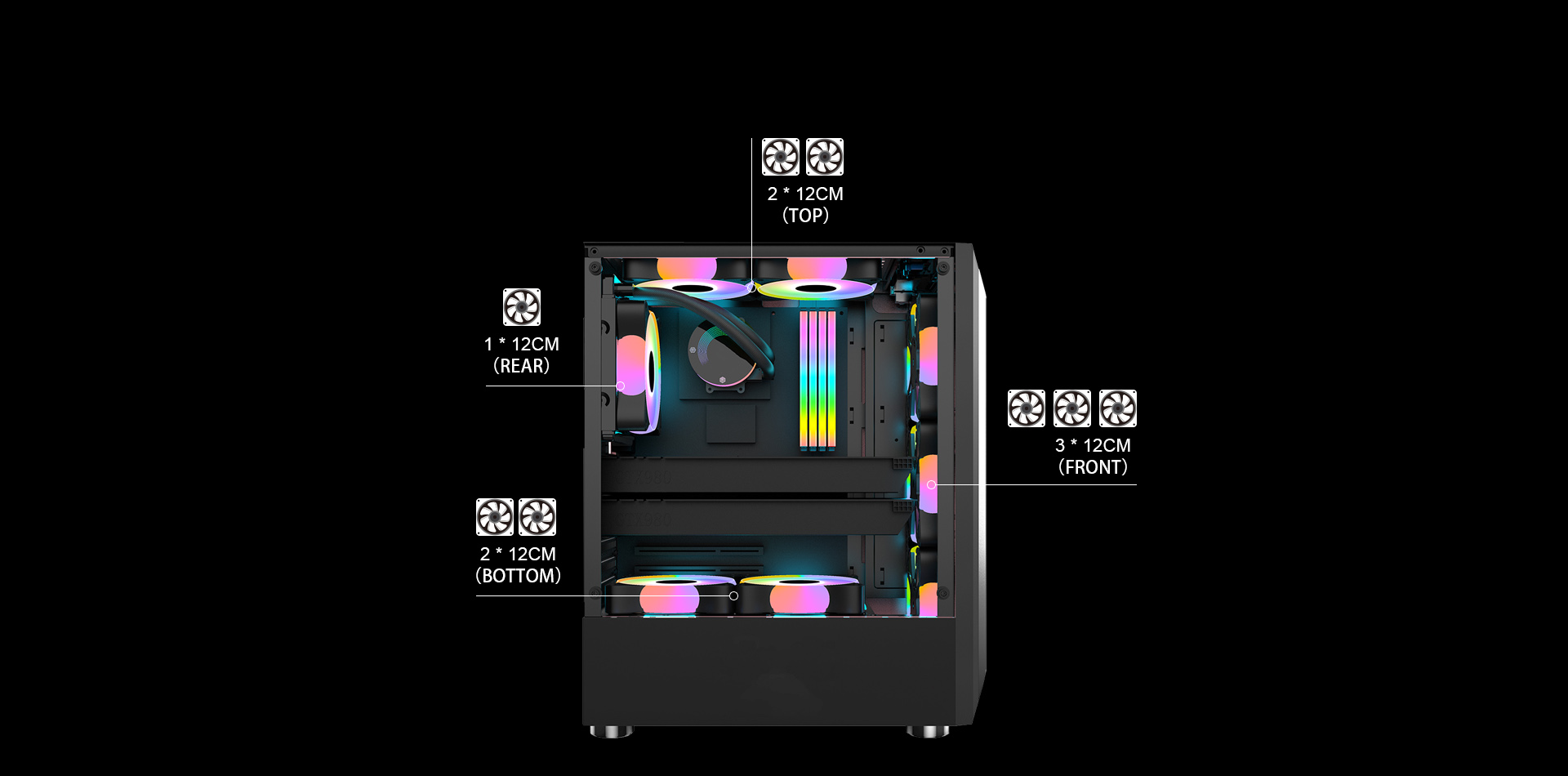

Fan Support
FRONT:3*120 MM
REAR:1*120 MM
TOP:2*120 MM
BOTTOM:2*120 MM
Liquid Cooling Support
TOP:240 MM
BOTTOM:240 MM
Power Supply Support
BOTTOM MOUNT(ATX)
Net Weight
3.9KG / 8.60lb
