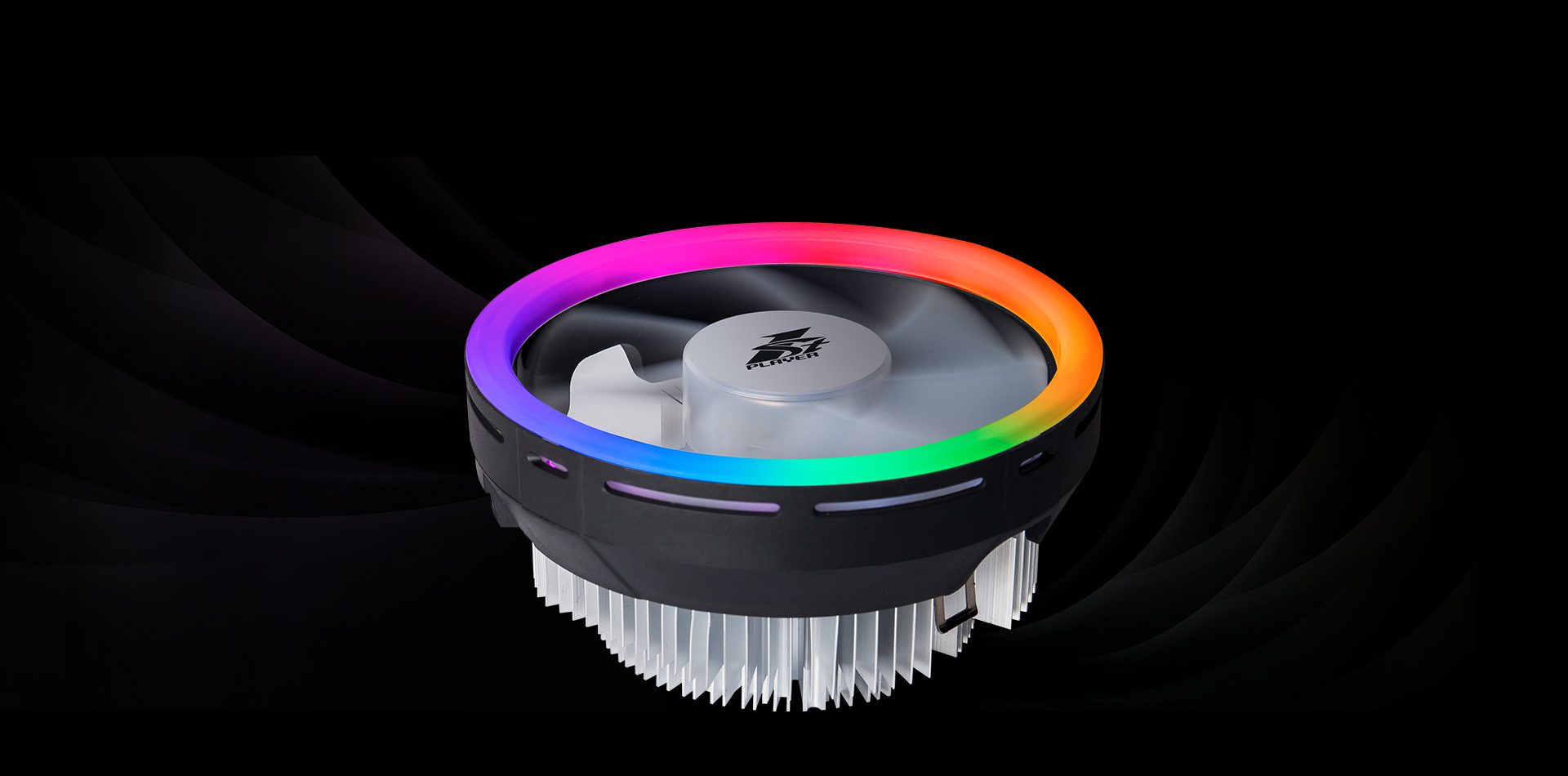

· With LED cycling effects.
· Compatible with Intel and AMD platforms.
· 12.4 CM fan brings high CFM and low noise.
· High-density aluminum fins deliver marvelous heat dissipation.
· Compact type ideally designs for AIO PC and small case.
Intel&Amd
12.4Cm
Silent Fan
5 Colors Backlit
With LED cycling effects.
Compatible with lntel and AMD platforms.
12.4 CM fan brings high CFM and low noise.
High-density aluminum fins deliver marvelous heat dissipation.
Compact type ideally designs for AIO PC and small case.
Insert the 4 clips into the proper holes on the platform mounting bracket.
Install the mounting bracket safely on the motherboard.
Press the 4 black push-pins into the clips.
Evenly apply a thin layer of thermal grease to the surface of the CPu.
Clasp the hooks of cooler mounting bracket onto the notch onunderside of platform mounting bracket.
Connect the cooler cable to the 3PIN/4PIN connector located on the motherboard.
MODEL
FR1
DIMENSIONS(L*W*H) FAN
124*124*32MM
TOTAL
124*124*69MM
AIR FLOW
33.0CFM(ft3/min)
NOISE LEVEL
30.0dB(A)
RATED VOLTAGE
12V
POWER CONSUMPTION
4.80W
SPEED
2200±10%R.P.M
AIR PRESSURE:
1.21mm-H2O
POWER CONNECTOR:
3PIN
RATED CURRENT:
0.40A MAX
WARRANTY:
2 YEARS
SOCKET SUPPORT
INTEL LGA 1156/1155/1151/1150/775
AMD AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
