· Compatible with Intel and AMD platforms.
· 7.5 CM fan brings high CFM and low noise.
· High-density aluminum fins deliver marvelous heat dissipation.
· Compact type ideally designs for AIO PC and small case.
Intel&Amd
12.4Cm Silent Fan
Marvellous
Heat Dissipation
Compatible with lntel and AMD platforms.
7.5 CM fan brings high CFM and low noise.
High-density aluminum fins deliver marvelous heat dissipation.
Compact type ideally designs for AlO PC and small case.
Insert the 4 clips into the proper holes on the platform mounting bracket.
Install the mounting bracket safely on the motherboard.
Press the 4 black push-pins into the clips.
Evenly apply a thin layer of thermal grease to the surface of the CPu.
Clasp the hooks of cooler mounting bracket onto the notch onunderside of platform mounting bracket.
Connect the cooler cable to the 3PIN/4PIN connector located on the motherboard.

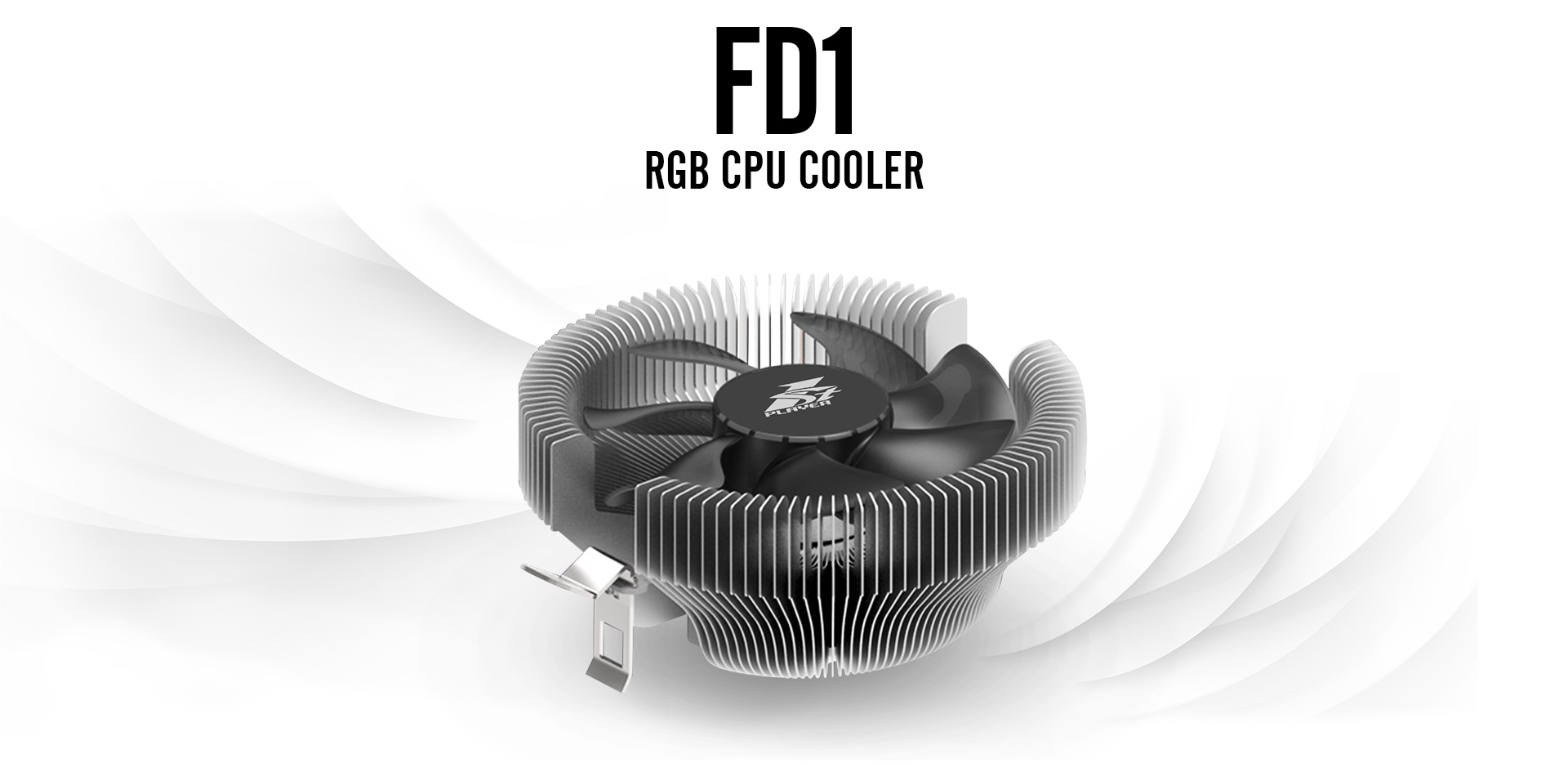

MODEL
FD1
DIMENSIONS(L*W*H) FAN
75*75*15MM
TOTAL
115*105*45MM
AIR FLOW
27.50CFM(ft3/min)
NOISE LEVEL
24.80dB(A)
RATED VOLTAGE
12V
POWER CONSUMPTION
2.88W±10%
SPEED
2000±10%R.P.M
AIR PRESSURE
1.92mm-H2O
POWER CONNECTOR
3PIN
RATED CURRENT
0.19A±10% MAX
WARRANTY
2 YEARS
SOCKET SUPPORT
INTEL LGA 1156/1155/1151/1150/775
AMD AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
